NEW: Next Level F1-Series

One Platform. Four Models. More Features at Every Level.

Fluidwell proudly introduces the Next Level F1-Series: The next generation of F1-Series level indicators, monitors and controllers.
These four powerful new products not only build upon the proven functionality of the previous F1-Level Series, they also introduce a broad range of enhanced capabilities designed to meet the growing demands of modern industrial applications. From advanced level monitoring and control to sophisticated pump management and open channel flow measurement, these new F1-Level Series takes performance, functionality and reliability to the next level.

What makes the new series so powerful is its platform architecture. Each higher model contains the complete functionality of the lower model and adds new features on top. This allows users to select exactly the functionality they need while maintaining a familiar operating structure across the entire range.

Start with Monitoring. Grow to Complete Control.

• The series begins with the F170 Level Monitor, providing accurate level indication, alarm monitoring, analog retransmission and communication capabilities in a robust field mount enclosure.
• Stepping up to the F173 Level Monitor / Controller, users gain advanced control functionality, configurable hysteresis, remote control inputs and 48-point strapping table / linearization for accurate volume calculations and tank shape compensation.
• The F174 Pump / Level Controller adds powerful pump management features including pump groups, alternating pump operation, running-hour balancing, fill and drain cycles, pump diagnostics and advanced level control functions.
• At the top of the range, the F175 Pump / Level Controller & Open Channel Flow Monitor combines all F174 functionality with dual open channel flow monitoring, flow totalizing, (sampling) pulse output and flow calculations according linear relationship, table-based and with standard weir/flume calculation factors.

Ready for Real-World Applications

The Next Level F1-Series is designed for a wide range of industrial level, pump and flow applications. Typical installations include wastewater and stormwater pumping stations, reservoirs, storage tanks, process vessels, irrigation systems and open channel flow monitoring points.
Whether managing pumps in a wastewater pumping station or monitoring flow through a weir or flume, the Next Level F1-Series delivers the functionality, reliability and flexibility required for demanding field applications.

Know One, Know Them All

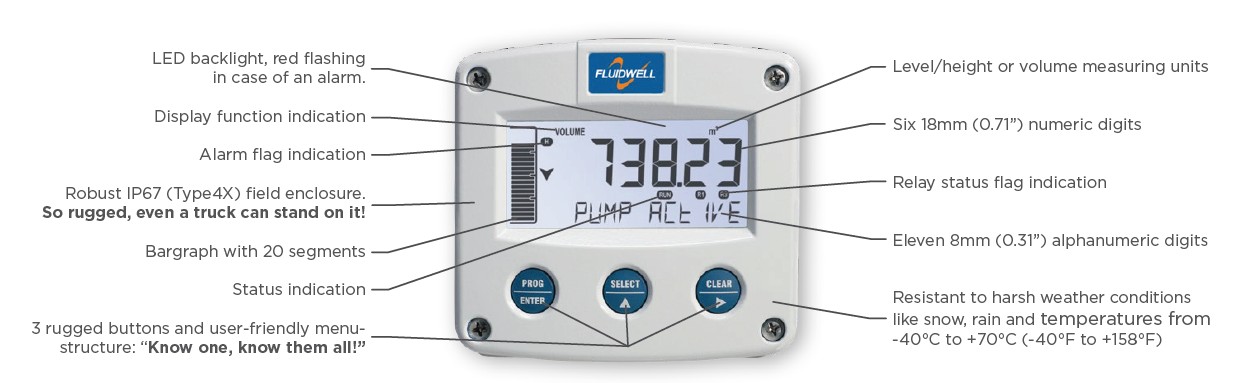

Despite the expanded functionality, the F1-Series remains easy to operate. Every model shares the same intuitive menu structure, display philosophy and configuration approach. Once familiar with one instrument, users can confidently configure and operate any model in the series.
For even faster setup, Fluidwell offers free PC-based Configuration Software. Simply connect via the integrated USB-C port or Modbus communication interface to configure and save settings in a clear graphical environment. It is the easiest way to unlock the full capabilities of the Next Level F1-Series.

Next Level F1-Series

Whether the application requires simple level monitoring, advanced level control, sophisticated pump management or open channel flow measurement, the Next Level F1-Series offers a future-ready solution that grows with application requirements.

One platform. Four models. More Features at Every Level.

Download Comparison Sheet
